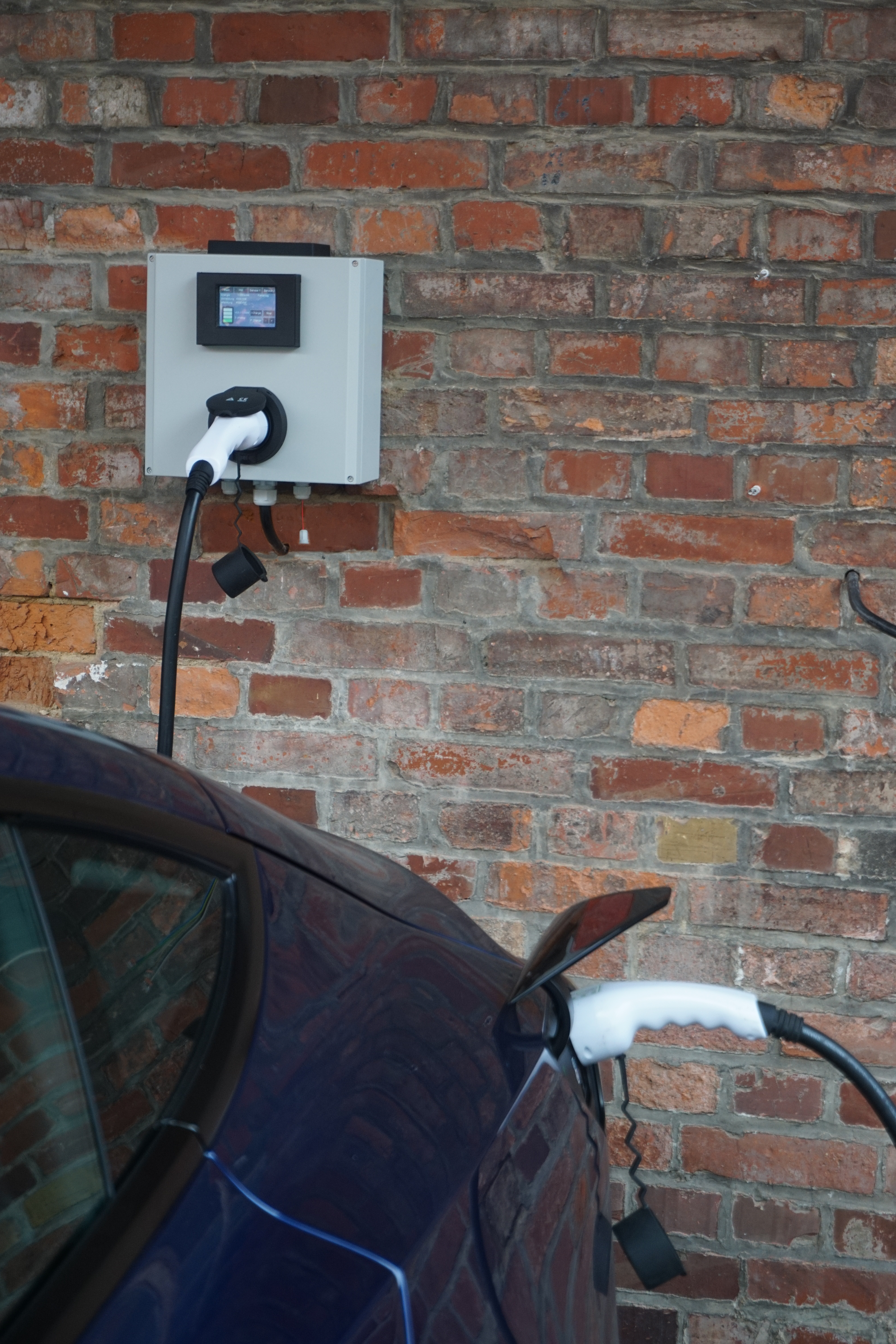

The intelligent wallbox FuE011

The FuE011 Wallbox is the intelligent solution for charging your electric vehicle. The charging mode can be adapted and optimized to the grid feed-in of your home's photovoltaic system. Excess solar power can be used, for example, to charge your electric vehicle. The Wallbox is compatible with the Homematic smart home system and can be easily controlled from a smartphone or PC.


Wallbox FuE011 and the smart home products can be purchased directly via the contact form.

Prices:

  • Commercial customer (excluding VAT): €929
  • Private customer (including VAT): €1,106
Contact

The intelligent wallbox FuE011

The FuE011 Wallbox is the intelligent solution for charging your electric vehicle. The charging mode can be adapted and optimized to the grid feed-in of your home's photovoltaic system. Excess solar power can be used, for example, to charge your electric vehicle. The Wallbox is compatible with the Homematic smart home system and can be easily controlled from a smartphone or PC.


Wallbox FuE011 and the smart home products can be purchased directly via the contact form.

Prices:

  • Commercial customer (excluding VAT): €929
  • Private customer (including VAT): €1,106
Contact

Information and data about the Wallbox FuE011:

Homematic components/functionality Radio module HmIP-MOD-OC8, ESP32 Power recording HM-ES-TX-WM, ES-IEC Evaluation of weather data (enercast) Evaluation of the current power Setting of the maximum charging power Control of charging time and power according to specified criteria Technical data Plug type Socket type 2 female (IEC 62196-2) Dimensions 280 x 280 x 130 mm Charging mode Mode 3 Weight approx. 5 kg Operating temperature -25 °C to 40 °C Storage temperature -40 °C to 70 °C Maximum charging power 3.6 kW (single-phase) / 11 kW (three-phase) Maximum charging current 16 A, cable: 5 x 6 mm² Nominal frequency 50 Hz / 60 Hz Input voltage 400 V AC ± 10 % (three-phase) Charging power adjustable from 1.5 to 3.6 kW (single-phase); from 4 to 11 kW (three-phase) Protection class IP66 Overvoltage category CAT III RCCB Integrated

Article:

  • Wallbox
  • Hole pattern
  • Operating and installation instructions
  • (Optional with additional costs) Meter sensor and Homematic central unit

Instructions for operation and installation:

Operating instructions: BA_FUE011BN01_211101 Installation instructions: IA_FUE011BN01_220620 Last updated: 29.07.2022
